Inspection System of Volume
Medical Equipment Center of Sawanpracharak
Equipment Information
IPM NO: 25543 Department : ศูนย์เครื่องมือแพทย์
ID Code: BENN-MEC-08 IPM Round : รอบที่ 1
IPM date : 1 ต.ค 2568 Bennett / 840 / SN: 3512204665
IPM Type : IPM Planning   New-Equipment   Post Repair   IPM Missing Planning   Other
IPM Environment : Ambient Temperature : 24 °C Humidity : 60 %
Equipment Tester Standard

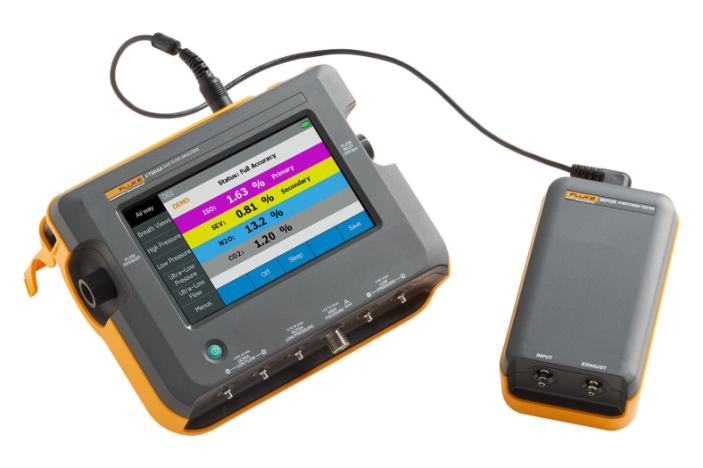

MASTER : Gas Flow Analyzer
FLUKE / VT900A / SN: 5058807
Cal Date Lasted : 21 ก.ค 2567
Equipment Tester Electrical
MASTER : Electrical Safety Analyzer
FLUKE / ESA620 / SN: 5653005
Cal Date Lasted : 18 ก.ค 2567
This certificate may not be reproduced except in full unless permission for reproduction has been obtained in writing from the calibration.
CONDITION OF THIS RESULT OF TEST

1. THIS CERTIFICATION IS TRACEABLE TO

     -

2. THIS RESULT OF TEST WAS FOUND ACCURATE AS SHOW ON DATE AND PLACE OF TEST ONLY

     -

CheckList

List Set/Indicated Critiria Measured Pass/Fail
1. VOLUME 400 ml 400 ± 10 % 399.4
2. VOLUME 600 ml 600 ± 10 % 596.3
3. VOLUME 800 ml 800 ± 10 % 798
4. RATE 30 bpm 30 ± 10 % 30
5. RATE 20 bpm 20 ± 10 % 20
6. RATE 15 bpm 15 ± 10 % 15
7. I:E (1) 1 ± 10 1
8. I:E (2) 2 ± 10 1.98
9. I:E (3) 3 ± 10 2.98
10. PIP 20 cmH2O 20 ± 10 % 19.93
11. PIP 30 cmH2O 30 ± 10 % 28.8
12. PIP 40 cmH2O 40 ± 10 % 39.01
13. PEEP 5 cmH2O 5 ± 10 % 4.83
14. PEEP 10 cmH2O 10 ± 10 % 9.79
15. PEEP 15 cmH2O 15 ± 10 % 14.85
16. %Oxygen 21 21 ± 10 % 21.2
17. %Oxygen 60 60 ± 10 % 59.4
18. %Oxygen 100 100 ± 10 % 98.4
Note

Acceptor BY

..............................

หัวหน้าหน่วยงาน

Done BY

..............................

(ประจักษ์ ชัยศิริ)
